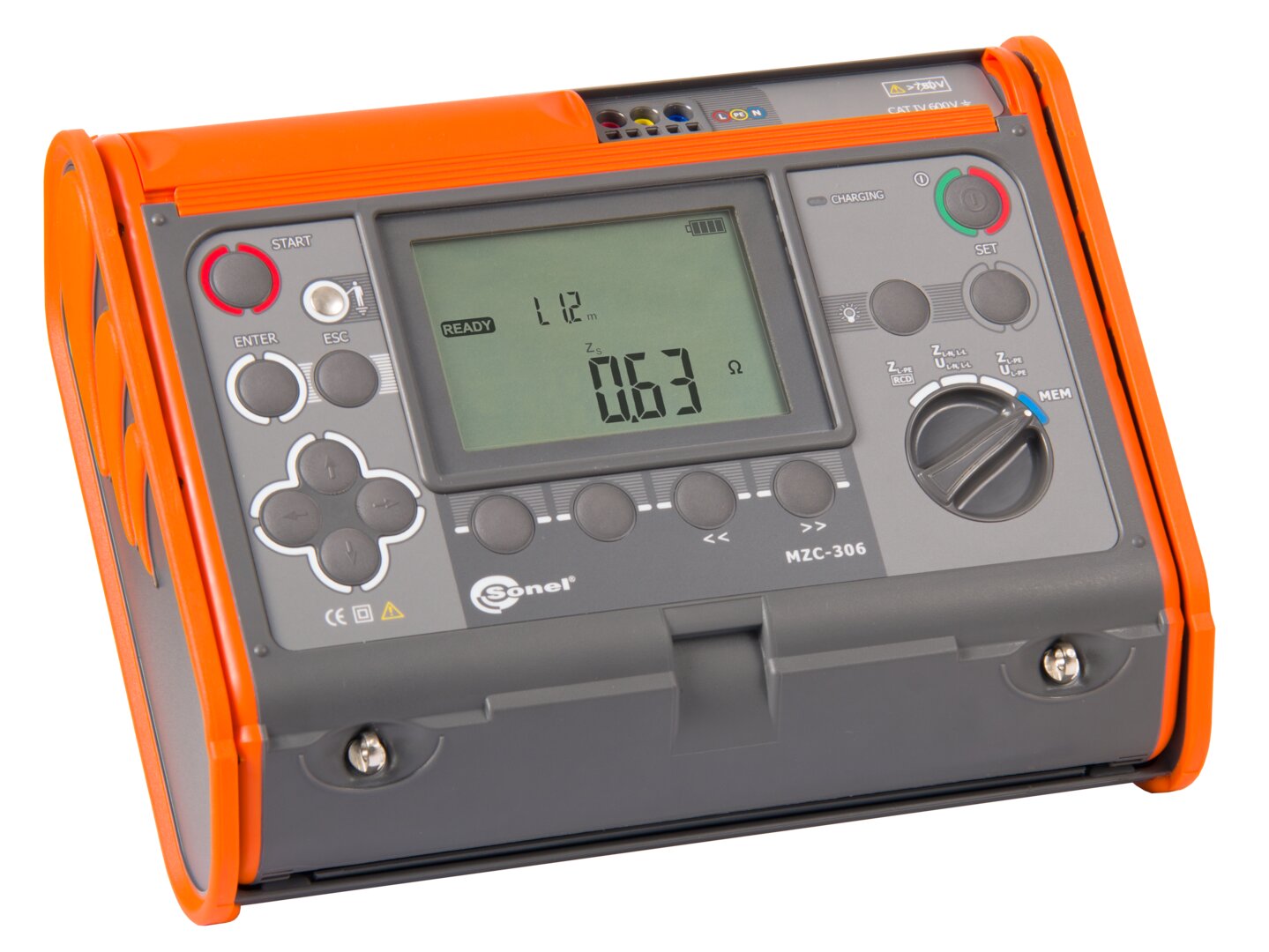

MZC-306

Catalog index: WMGBMZC306

Fault Loop Impedance Meter

Keep up to date with products in the category

Lightweight and professional fault loop meter

Owing to a wide range of operating voltages, the professional meter Sonel MZC-306 enables measurements in various types of networks. The device is invaluable for a variety of electrical work in low-voltage areas, such as homes and buildings, public facilities, small workshops and small factories.

The resolution of the measurement result is 0.01 Ω - also when performing measurements in networks protected by RCD circuit breakers. The casing of the MZC-306 meter is made in IP54 protection degree, which ensures its resistance to mechanical damage. The cover of the device can be set in several positions, which enables easy and comfortable transport and use of the device.

Capabilities

  • Fault loop impedance measurement with 0.01Ω resolution
  • Low-current impedance measurement in circuits protected by RCD ≥ 30mA with 0.01 Ω resolution (100…440 V)
  • Operates in networks with voltages 110/190 V, 115/200 V, 127/220 V, 220/380 V, 230/400 V, 240/415 V, 290/500 V and 400/690 V (operating range 100…750 V)
  • Operating frequency 45…65 Hz
  • Calculation of fault current
  • Automatic differentiation between phase and phase-to-phase voltage
  • Possibility of applying 1.2, 5, 10, 20 m test leads or an adapter terminated by a power network plug
  • Measurement with swapped L and N conductors
  • Measurement of resistance (RS) and reactance (XS) components

Additionally features

  • Contact electrode - quick testing of proper connection of PE conductor.
  • Voltage measurement 0...750 V AC (0...250 V with resolution of 0,1 V).
  • Memory of 990 measurement results, ability to transfer the data to a PC via USB.
  • Power supply: batteries (4 x LR14) or rechargeable batteries.

Application

This instrument is irreplaceable for all kind of electrical works, especially in situations where there is a need to check the circuits under voltage of 400/690 V. The meter is used for tests in homes, apartment blocks, public buildings, small workshops or factories and even at wind farms.

The meter is a perfect tool for testing systems, where fault currents may reach 5.3 kA (measured according to EN 61557).

Specification

Measurement of short circuit loop impedance (ZL-PE, ZL-N, ZL-L)
Measuring range according to IEC61557: 0,13…1999 Ω for 1,2 m test leads; 0,25…1999 Ω for UNI-SCHUKO adapter

Range Resolution Accuracy
0,00…19,99 Ω 0,01 Ω ±(5% m.v. + 3 Digits)
20,0…199,9 Ω 0,1 Ω ±(4% m.v. + 3 Digits)
200…1999 Ω 1 Ω
  • rated operating voltage UnL-N/ UnL-L: 110/190 V, 115/200 V, 127/220 V, 220/380 V, 230/400 V, 240/415 V, 290/500 V, 400/690 V,
  • operating voltage range: 100…440 V (for ZL-PE and ZL-N) and 100…750 V (for ZL-L)
  • high current measurement (up to 30 A),
  • operating frequency range: 45…65 Hz,
  • control of correctness of PE terminal connection by means of a contact electrode (applicable to ZL-PE),
  • measurement is also possible when L and N circuits are swapped,
  • measurement of resistance and reactance components,
  • short circuit current calculation.

Measurement of short circuit loop impedance ZL-PE RCD (without RCD tripping)
Measuring range according to IEC61557: 0,43…1999 Ω for 1,2 m test leads; 0,50…1999 Ω for UNI-SCHUKO adapter

Range Resolution Accuracy
0,00…19,99 Ω 0,01 Ω ±(6% m.v. + 10 Digits)
20,0…199,9 Ω 0,1 Ω ±(6% m.v. + 5 Digits)
200…1999 Ω 1 Ω
  • operating voltage range: 100 … 440 V,
  • rated operating voltage Un: 110 V, 115 V, 127 V, 220 V, 230 V, 240 V, 390 V, 400 V,
  • control of correctness of PE terminal connection by means of a contact electrode,
  • measurement is also possible when L and N circuits are swapped,
  • measurement of resistance and reactance components,
  • short circuit current calculation.



Voltage measurement

Range Resolution Accuracy
0,0…249,9 V 0,1 V ±(2% m.v. + 4 Digits)
250…750 V 1 V ±(2% m.v. + 2 Digits)
  • frequency range 45…65 Hz,
  • overvoltage alarm.



Electrical safety:

  • type of insulation: double, according to IEC 61010 – 1
  • measurement category: CAT IV 600 V (CAT III 1000 V)
  • protection class acc. to EN 60529: IP54

Other technical data

  • power supply: alkaline batteries or NiMH rechargeable batteries, LR14 (4 pcs)
  • number of Z measurements (for alkaline batteries): > 5000
  • time to Auto-OFF: 300 seconds
  • data transmission: USB
  • memory of measurement results: 990 cells, 3500 entries
  • display: LCD segment
  • dimensions: 288 x 223 x 75 mm
  • meter weight: ca. 2 kg

„m.v.” measured value
